We bought air bearing equipment in order to meet the transportation standard that high tech industry,
such as
semiconductor, photoelectric, solar energy, requires; and also for the transportation of precise
equipment or
measurement instrument
that medical industry needs. The air bearing can prevent the damage and the precision distortion caused
by shakes or
sway during the transportation.

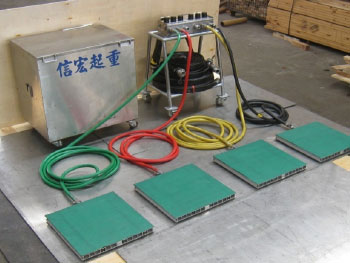

Air bearing module

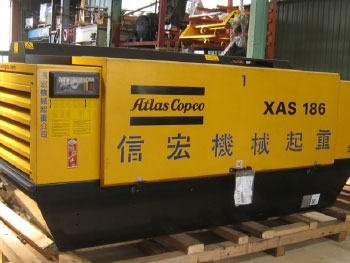

Air bearing jack and air flow control
Semiconductor Precise Equipment Machinery Moving-in Process
Pre-operation, clean room route paving
(put on PE film first and then put on galvanized iron plate; avoiding the plate damage the
floor)

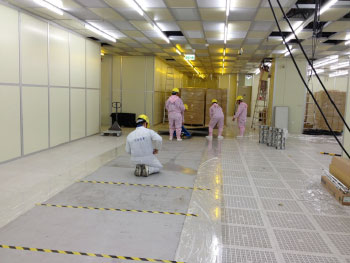

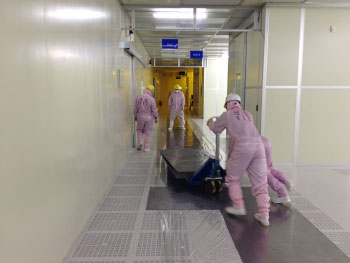

Clean room, operating route paving

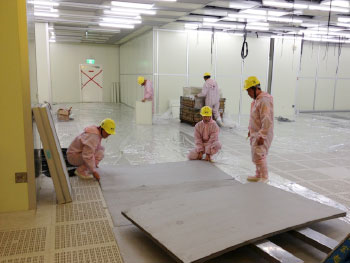

Proceeding galvanized iron plate paving, seamless
(prevent plate scratch and damage air bearing jack during the air bearing transportation)

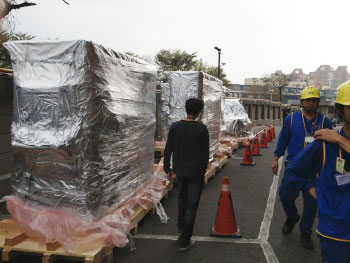

Check and examine the appearance of the goods before unloading
(check whether the color on the indicator changes and whether there is any damage on the box)

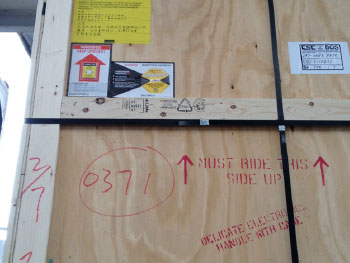

Indicator checking

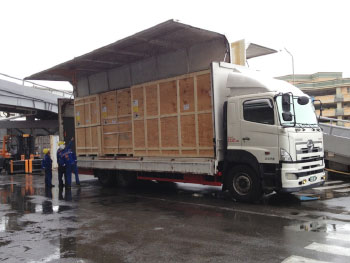

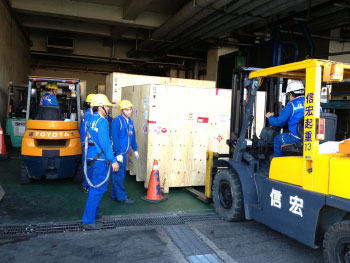

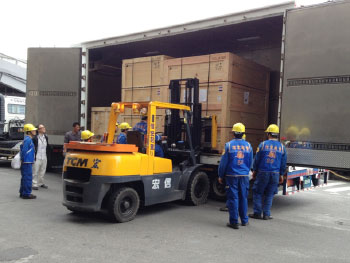

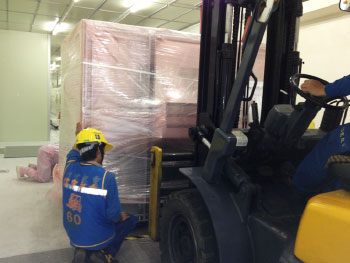

Directing forklift truck to proceed unloading

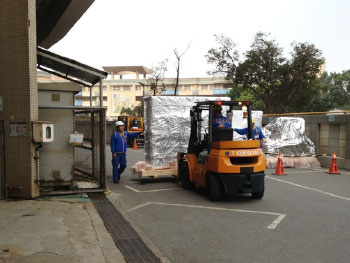

Moving the timber box to operating area

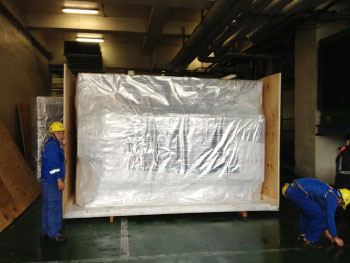

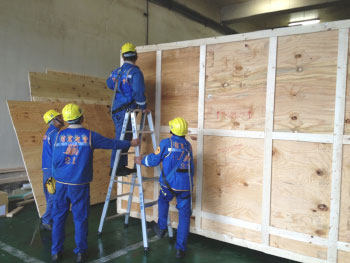

Timber box disassembling
Timber box disassembling
(Keep safe in working area, pay attention on nails on the ground and remove them to avoid any
staff get
hurt)

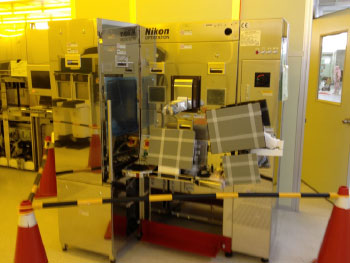

Keep operating area safe and close it off
(place traffic cones to separate it from other areas)
Assign staff to guide and direct on both sides when moving the equipment

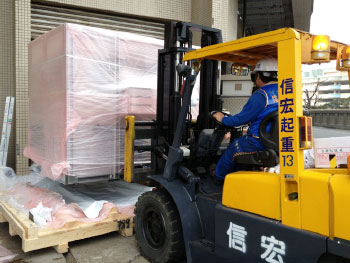

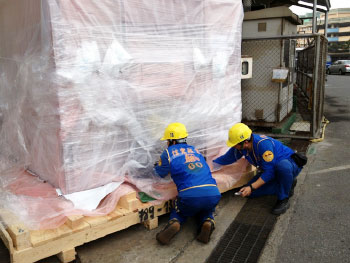

Remove vacuum packing and check whether the equipment is fixed with the base
Separate the equipment with the base

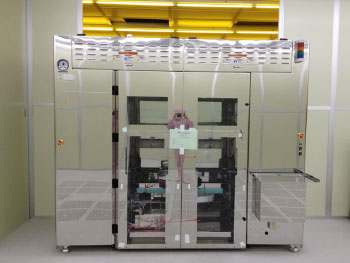

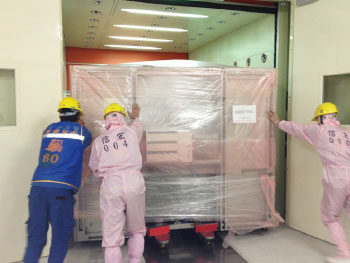

Move into clean room buffer zone
Move into air shower room

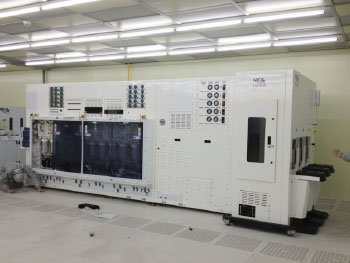

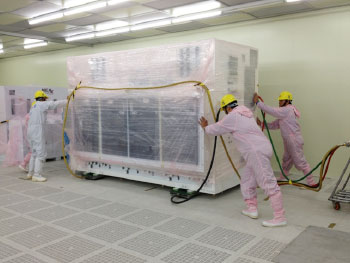

Air bearing transportation, route paving (TEL NEXX Stratus S300-FX)

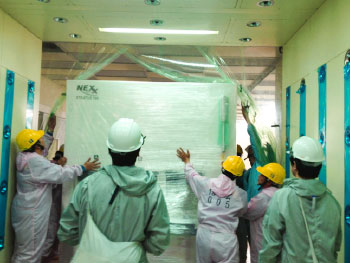

Using PE film to make a temporary curtain on the entrance of the clean room if the equipment is
over-length

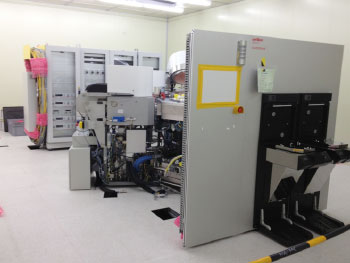

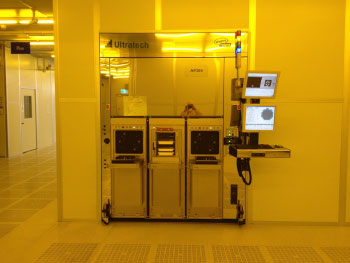

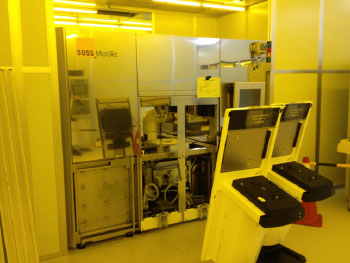

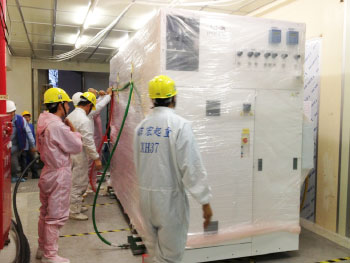

Positioning for air bearing transportation (TEL NEXX Stratus S300-FX)
